Qiangchi / Product portfolio
Find the equipment.
Define the project scope.
Explore medium- and low-voltage switchgear, substations and switching components. Start with a family, then confirm the configuration against your requirements.
Primary range
QCL ring main units & GIS
12 kV SF6 ring main unit
QCL-12
For secondary distribution and project-configured C, F and V functions.
View specifications
24 kV SF6 switchgear
QCL-24
Coordinate feeder functions, protection and cable interfaces around the SLD.
View specifications
40.5 kV gas-insulated switchgear
QCL-40.5
Current rating, arrangement and document scope are confirmed by project.
View specificationsImages show configuration references. The selected arrangement, ratings and supplied appearance follow the approved project documents.
Choose the appropriate technology
Different insulation requirements. Clear product routes.
| Product family | Insulation approach | Next step |
|---|---|---|
| XGN15-12 | Air-insulated cabinet. Switching-device insulation is a separate selection detail. | Explore XGN15-12 |
| QCG-12 | Solid insulation; 12 kV, 50 Hz, SF6-free. | Explore QCG-12 |
| QCHB-12 | Nitrogen or dry-air insulation, according to the selected configuration. | Discuss QCHB-12 |
Specify your required insulation medium at the start. These are distinct product families and do not share a blanket test-document scope.
Broader project supply
Complete your equipment list
KYN28 · XGN66 · KYN61

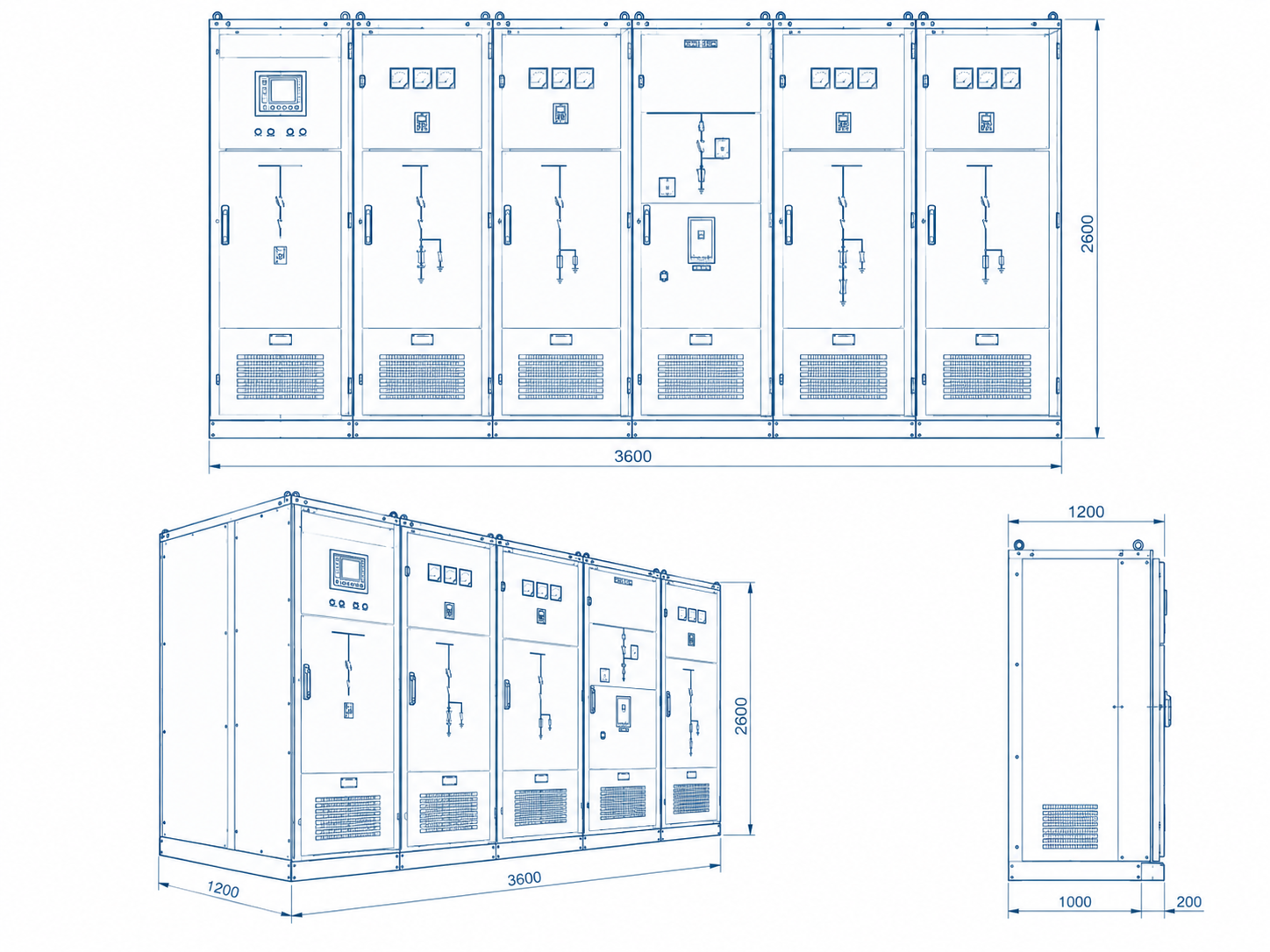

Medium-voltage switchgear
Metal-clad and fixed equipment selected around the feeder requirements.
GGD · GCK · MNS · GCS
Low-voltage switchboards
Distribution and motor-control assemblies for buildings and industrial projects.
YB-12 · Project-configured assemblies
Prefabricated substations
Coordinate MV equipment, transformer and LV distribution in one agreed supply scope.
Switching stations · Cable distribution
Outdoor distribution equipment
Outdoor enclosures and distribution arrangements matched to installation requirements.
QCDL (VS1) · FLN36
Breakers & load-break switches
Components for panel integration. Confirm the switching duty and mechanical/electrical interfaces.
Project coordination
Not sure which product fits?
Tell us your country, equipment function and system voltage. A drawing or specification is helpful, but a short question is enough to start.
