GGD · GCK · MNS · GCS
Low-Voltage Switchboards
Project-configured power distribution, motor control and compensation assemblies for industrial facilities and infrastructure.
Start with your country and application. A complete feeder schedule can follow.
Choose the assembly family

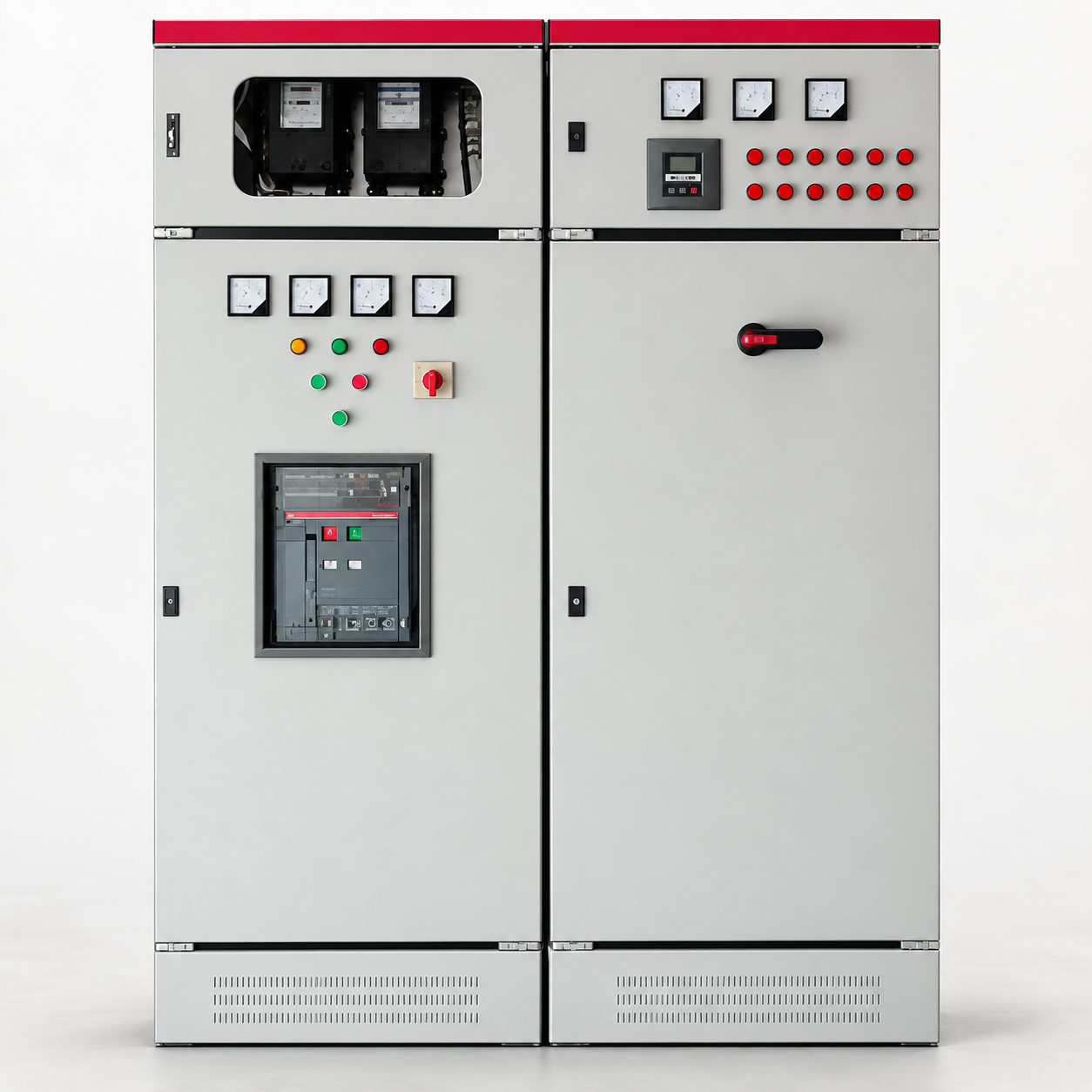

GGD · Fixed distribution
Fixed switchboards for power distribution and feeder control.

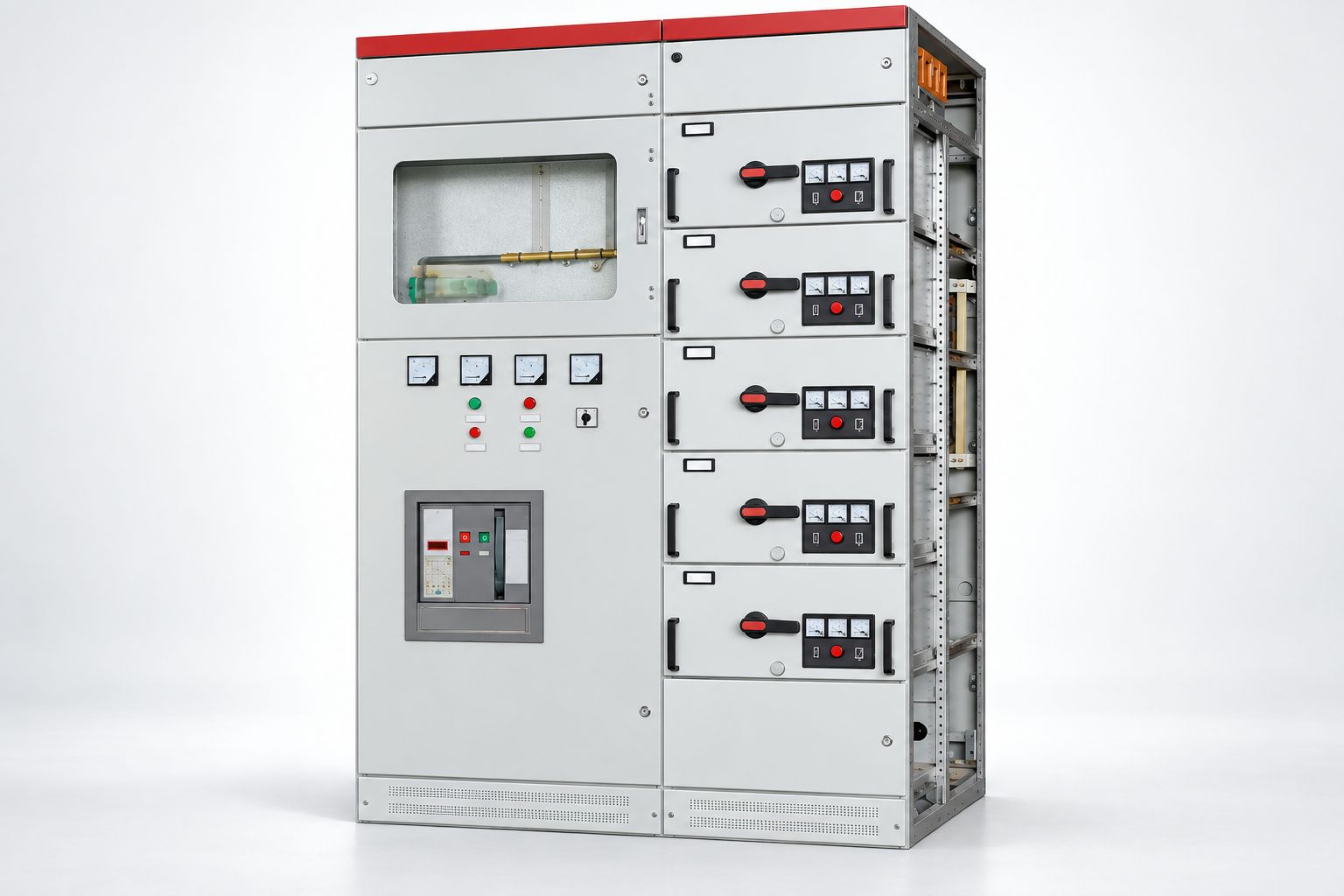

GCK · Withdrawable switchgear
Withdrawable arrangements for distribution and motor control.

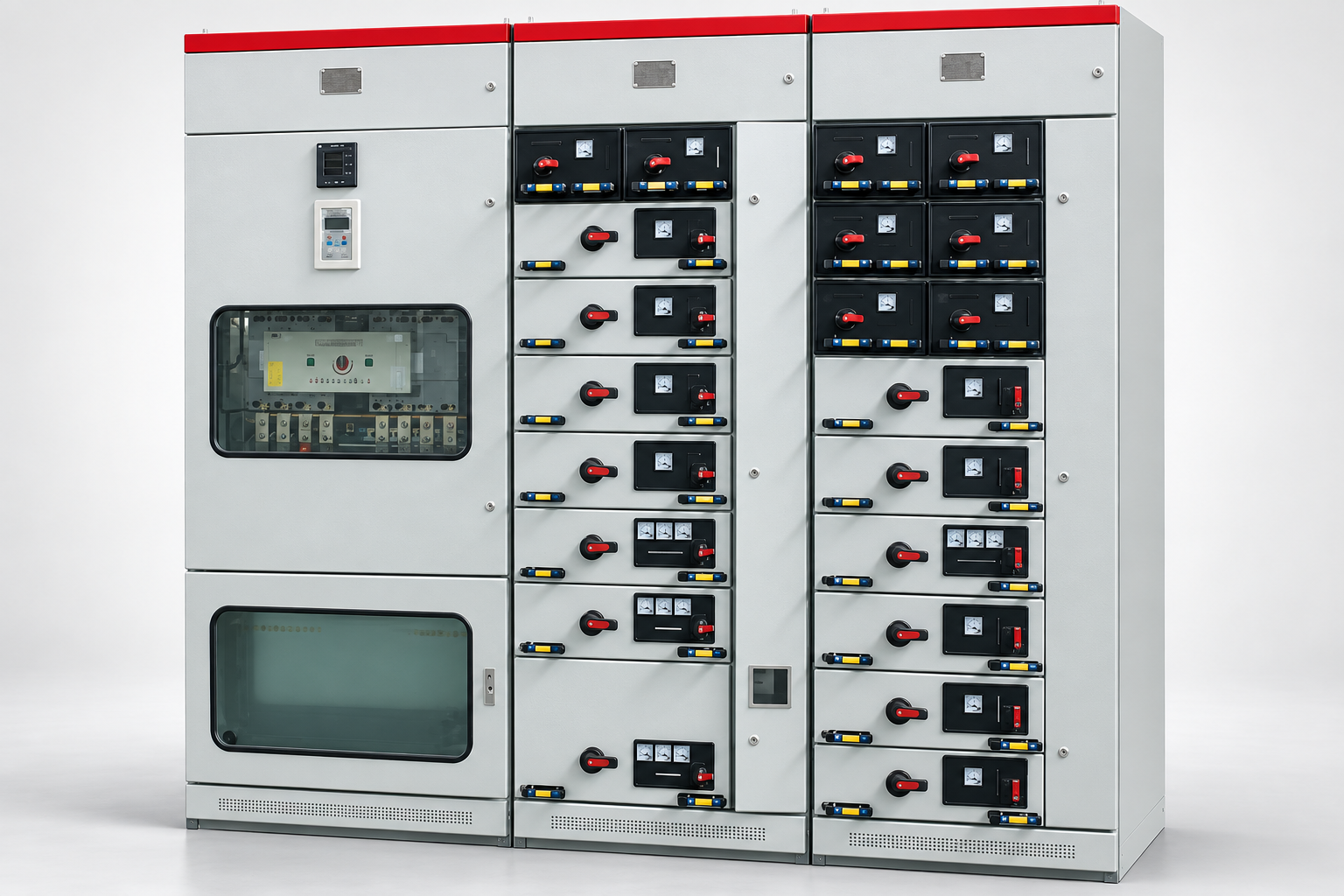

MNS · Modular switchgear
Modular assemblies for industrial distribution and motor-control systems.

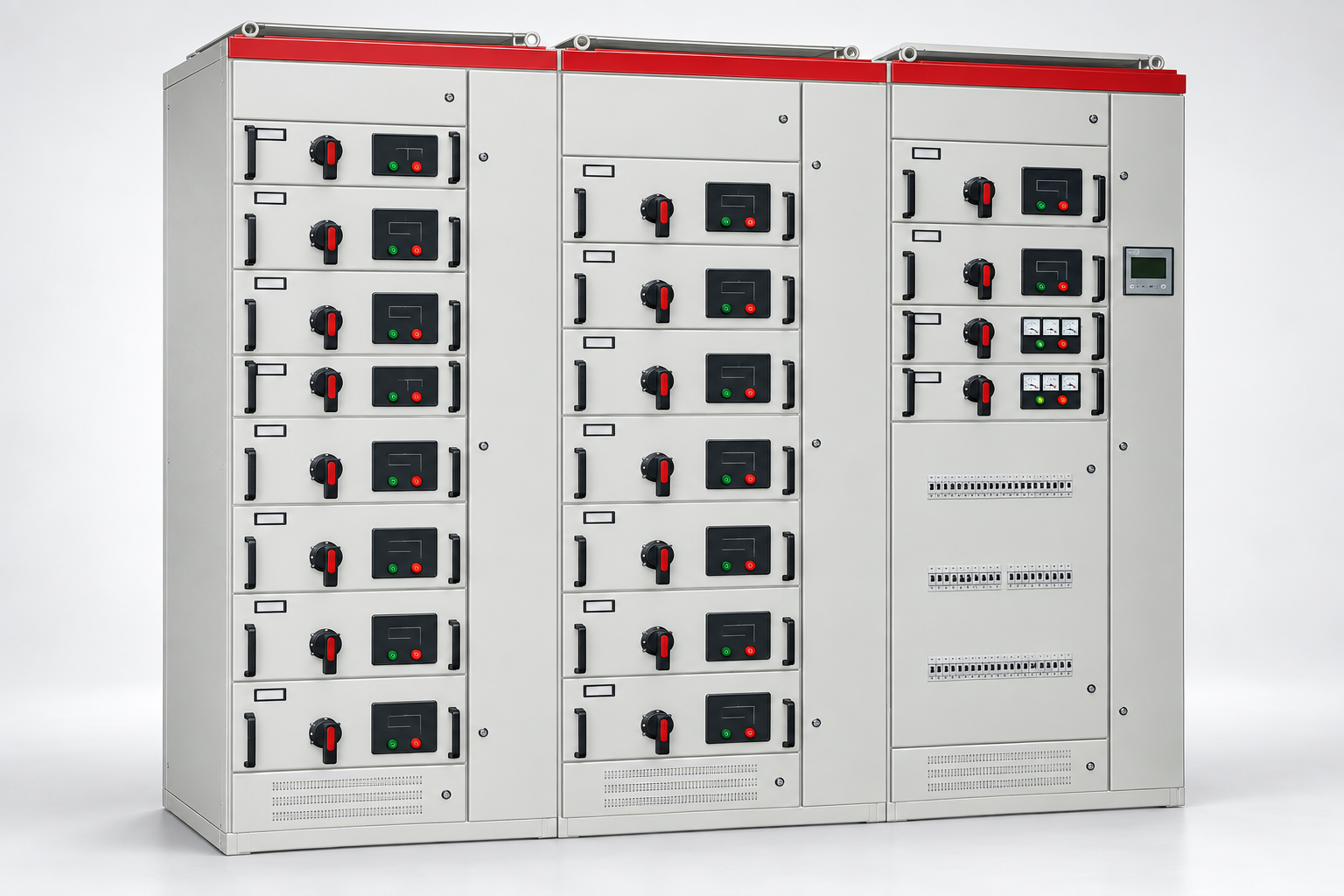

GCS · Withdrawable switchgear
Distribution, control and centralized motor applications.
Details we confirm during selection
Busbar ratings, separation, fault withstand, protection devices and enclosure requirements are confirmed from the project specification.
| Electrical system | Rated voltage, frequency, neutral/earthing method and applicable standard |
|---|---|
| Continuous duty | Busbar and feeder current, load type, diversity and future expansion |
| Fault duty | Prospective short-circuit current and required duration |
| Protection & control | Relay functions, CT/VT data, metering, communication and remote operation |
| Mechanical interface | Single-line diagram, panel lineup, cable size/entry, room dimensions and access |
| Service conditions | Indoor/outdoor, altitude, ambient temperature, humidity, pollution and seismic duty |
Share the information you already have. We will clarify the remaining details before preparing the final technical offer.
Drawings, inspection & documentation
Final ratings, components, dimensions, interlocks and accessories are stated in the approved technical agreement and drawings. Product photographs illustrate assembly families; the approved GA drawing defines the order.
Low-voltage switchboard questions
Which panel functions can be supplied?
Incoming, outgoing, bus-coupler, metering, reactive-power compensation and motor-control arrangements can be evaluated for the project.
How is the busbar rating selected?
The load schedule, diversity, fault level and temperature-rise requirements determine the required current and withstand duty.
Can I specify components?
Preferred component brands can be evaluated against availability, technical compatibility and the approved component list.
Are dimensions fixed?
Panel dimensions and lineup length depend on the circuit schedule, busbar rating, cable entry and installation space.
Can drawings and FAT be arranged?
SLD review, GA drawings, schematics, terminal information, inspection and agreed FAT checks can be coordinated for the confirmed scope.
Tell us what you need
A product name, your country and a short question are enough to start. If you have a drawing or specification, we can review it with you.
