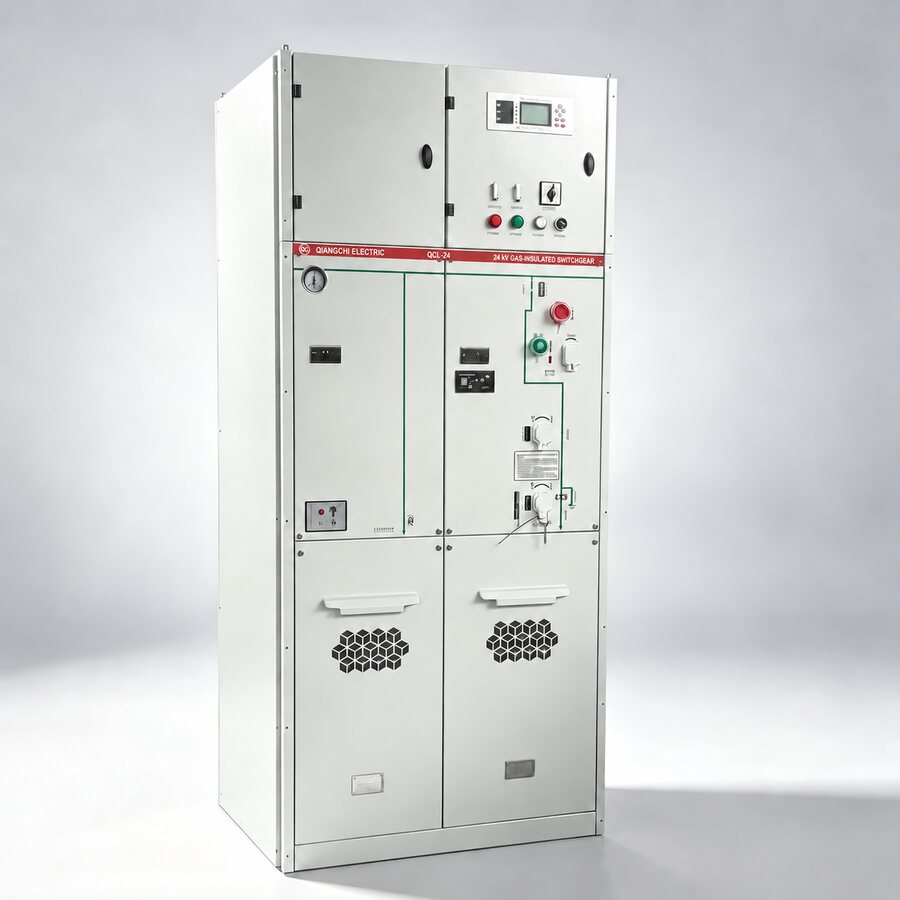

QCL-24 / Medium-voltage distribution
24 kV SF6 gas-insulated switchgear
A modular SF6-insulated platform for secondary distribution projects. Coordinate feeder functions, protection and cable interfaces around your single-line diagram.
Your SLD, system ratings and installation requirements define the final configuration.
Designed around the application
From network requirements to a clear equipment specification
Discuss feeder functions, protection, cable interfaces and installation conditions together, before fixing the supplied arrangement.
Secondary distribution
For ring-network feeders and secondary substations, with functional units selected to suit the distribution scheme.
Industrial & building projects
Match the equipment to load requirements, protection coordination, the installation environment and project specification.
EPC & panel integration
Coordinate the single-line diagram, general arrangement, auxiliary supply and technical documents before supply.
Technical reference
Key specifications, with their scope made clear
These values describe the documented product-family range. Confirm the selected functional unit and project requirements before ordering.
| Item | Product-family value |
|---|---|
| Rated voltage | 24 kV |
| Rated frequency | 50 Hz |
| Insulation system | SF6 gas insulation |
| Load-switch rated current | 630 A |
| Switch-fuse unit current | Up to 125 A, subject to fuse and project selection |
| Rated short-time withstand current | 20 / 25 kA, 3 s; according to configuration |
| Rated peak withstand current | 50 / 63 kA; according to configuration |
| 1 min power-frequency withstand voltage | 65 kV |
| Lightning impulse withstand voltage | 125 kV |
| Dimensions and interfaces | Confirm against the selected arrangement and approved drawings |
Final supply is governed by the approved technical agreement, drawings and order documents. Product-family ratings are not a substitute for the applicable test reports.
Functional units
Build the line-up from your single-line diagram
Start with the feeder function. Confirm switching duty, protection, earthing, interlocks and interfaces for the complete arrangement.
Load-break switch
Ring-network switching function. Confirm the operating mechanism, earthing arrangement and required interfaces.
Switch-fuse combination
Transformer protection using a selected fuse arrangement. Fuse selection follows the transformer and coordination requirements.
Vacuum circuit-breaker
Feeder or transformer protection. Confirm the protection relay, instrument transformers and auxiliary supply.
Additional project functions
Discuss cable connection, bus sectionalising, voltage-transformer or metering functions as required by the scheme. Dimensions, termination positions, operating clearances and extension interfaces need the selected arrangement drawing.
Explore drawings & interfacesEngineering documents
The right document for the decision in front of you
Check the model, revision and configuration scope before using a document in a project specification.
01 / Product information
Catalogues & data sheets
Review the product-family overview and technical reference values for QCL-24.
Download QCL-24 datasheet (PDF)02 / Project coordination
Drawings & interfaces
Discuss the selected line-up, installation envelope and cable connection requirements.
Explore drawing support03 / Technical evidence
Reports & test scope
Match the named sample, model and tests to your procurement requirements.
Review available report informationNeed a document for a specific unit or project? Include that requirement in your enquiry. Catalogue pages and reference drawings are distinct from approved project documents.
Make your enquiry easier
A short question is enough to start
If you have a specification, send it with your enquiry. If you do not, tell us your country, the equipment you need and what it will supply.
- Project country and installation conditions
- Rated voltage and frequency
- SLD, feeder functions and quantity
- Load current and short-circuit requirements
- Cable details and auxiliary supply
- Required documents and delivery schedule
QCL-24 questions
Can QCL-24 be used for 20kV and 22kV systems?
It can be evaluated for these networks when the required insulation level and project specification are satisfied. Equipment rated voltage and network operating voltage must be checked together.
How is the feeder combination selected?
The incoming, outgoing, transformer protection, bus section, metering and PT functions follow the approved single-line diagram.
Are dimensions fixed?
Dimensions depend on the selected functional unit, cable interface and auxiliary requirements. Final dimensions are issued in the approved GA drawing.
What information do you need for a quotation?
Start with your country and equipment requirement. For a detailed offer, we will confirm the voltage, current, fault level, quantity, protection, cable interfaces and delivery requirements.
Can drawings and witnessed FAT be arranged?
SLD review and project-specific GA drawings can be supplied. Routine testing, witness points and the FAT document scope are agreed for the confirmed project.
