Product family ยท Medium-voltage switchgear
Medium-voltage switchgear
Metal-clad and fixed switchgear for distribution applications. Compare the product families, then coordinate ratings and panel arrangements with your project specification.
Available product families

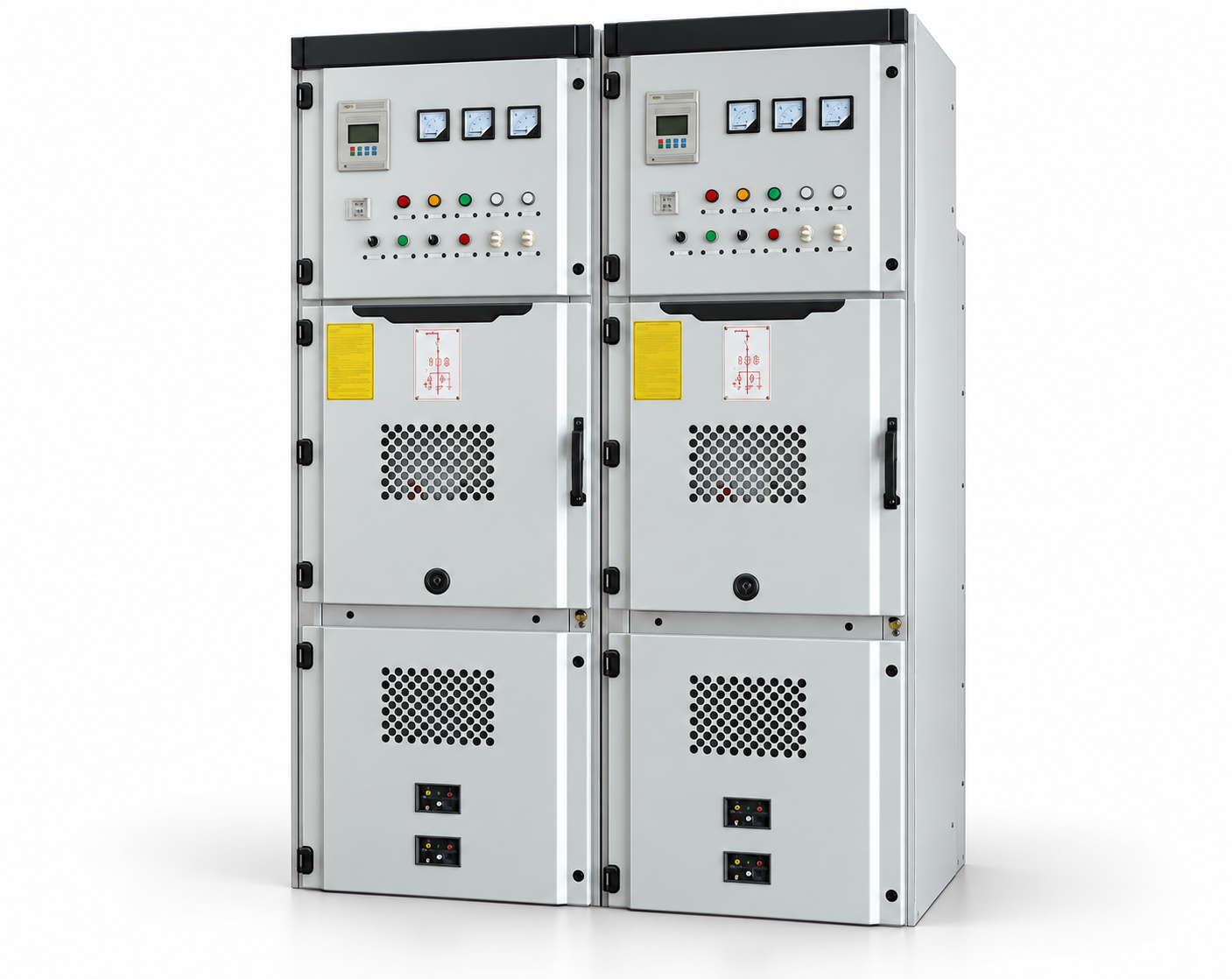

KYN28A-12
Withdrawable metal-clad switchgear for 10/11/12kV-class distribution.
Enquire about this range โ

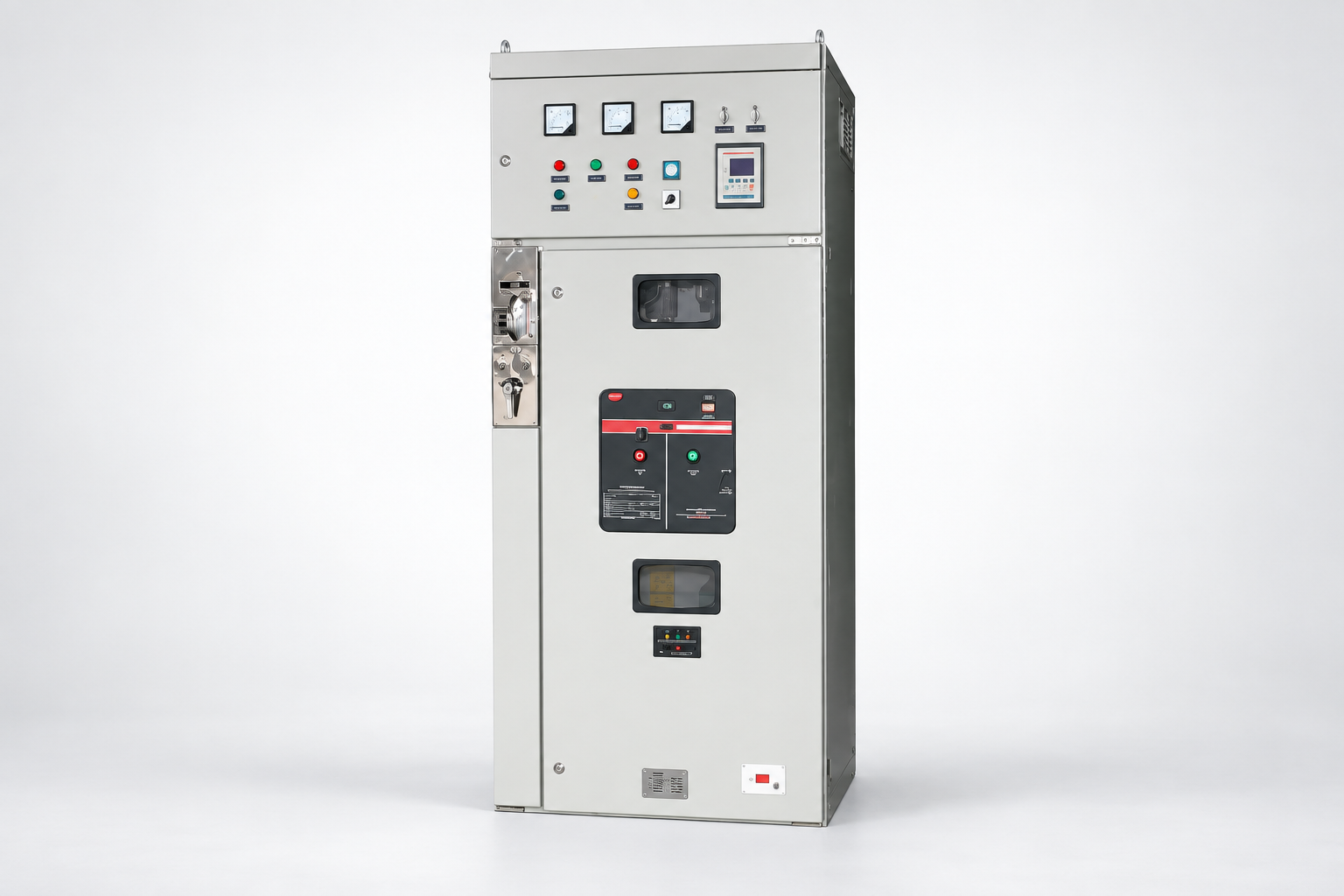

XGN66-12
Fixed switchgear; panel functions and final configuration follow project review.
Enquire about this range โ

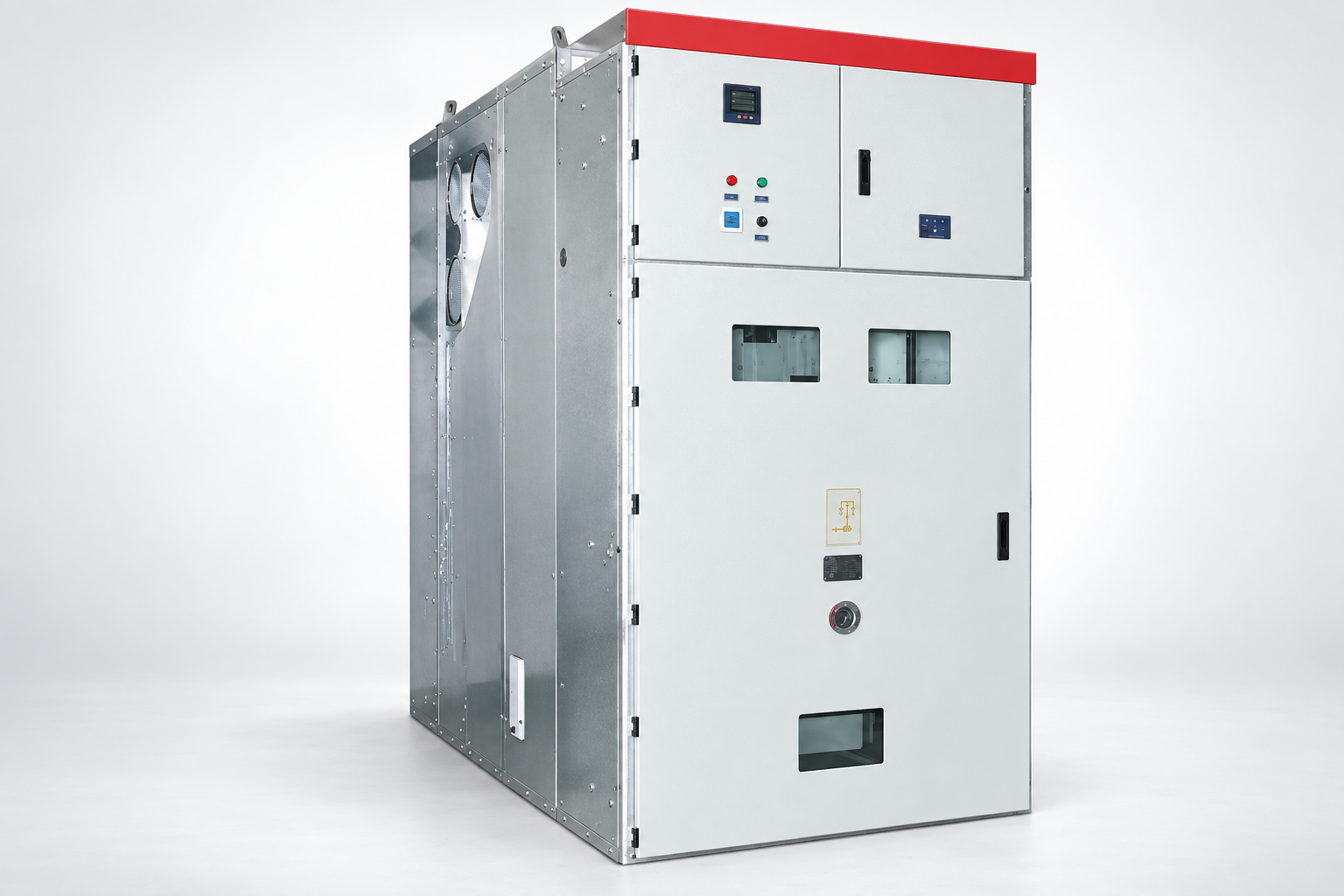

KYN61-40.5
Metal-clad switchgear for higher-voltage applications, with project-specific configuration.
Enquire about this range โImages illustrate product families. Final construction, dimensions and interfaces follow the approved drawings.
Information for equipment selection
| Electrical system | Rated voltage, frequency, neutral/earthing method and applicable standard |
|---|---|
| Continuous duty | Busbar and feeder current, load type, diversity and future expansion |
| Fault duty | Prospective short-circuit current and required duration |
| Protection & control | Relay functions, CT/VT data, metering, communication and remote operation |
| Mechanical interface | Single-line diagram, panel lineup, cable size/entry, room dimensions and access |
| Service conditions | Indoor/outdoor, altitude, ambient temperature, humidity, pollution and seismic duty |
Engineering & documentation
Final electrical ratings, components, dimensions, interlocks and accessories are confirmed in the technical agreement and drawings. Start with your system voltage, country and required equipment; the detailed SLD and interfaces can follow.
Tell us what you need
A product name, your country and a short question are enough to start. If you have a drawing or specification, we can review it with you.
